Jewelry Zircon Wax Setting Machine for Jewelry Making

As the jewelry industry evolves, speed, precision, and innovation are key. Traditional manual wax setting can't keep up with modern production needs. The YUBANG Automatic Wax Setting Machine is a high-efficiency CNC jewelry tool designed to make stone setting faster, more precise, and easier, helping jewelers stay ahead in a competitive market.

Overview of the YUBANG Jewelry Zircon Wax Setting Machine

The YUBANG YB-5DZ3-S model is an single station machine that automates the zircon diamond and gemstone setting process on wax molds.  Engineered for precision and speed, it combines 5-axis linkage, intelligent recognition, and electric-driven stone placement, achieving a professional finish suitable for 90% of jewelry styles in the market.

Why Jewelry Manufacturers Choose CNC Jewelry Wax Setting Machines?

In traditional jewelry setting making, stone setting on wax molds is time-consuming and skill-dependent. CNC wax setting machines solve these challenges with automation.

· Eliminate human error,

· Speed up production,

· Ensure perfect alignment and precision,

· Deliver consistent quality across batches.

For jewelers aiming for higher output and fewer returns, automation is no longer optional — it’s essential.

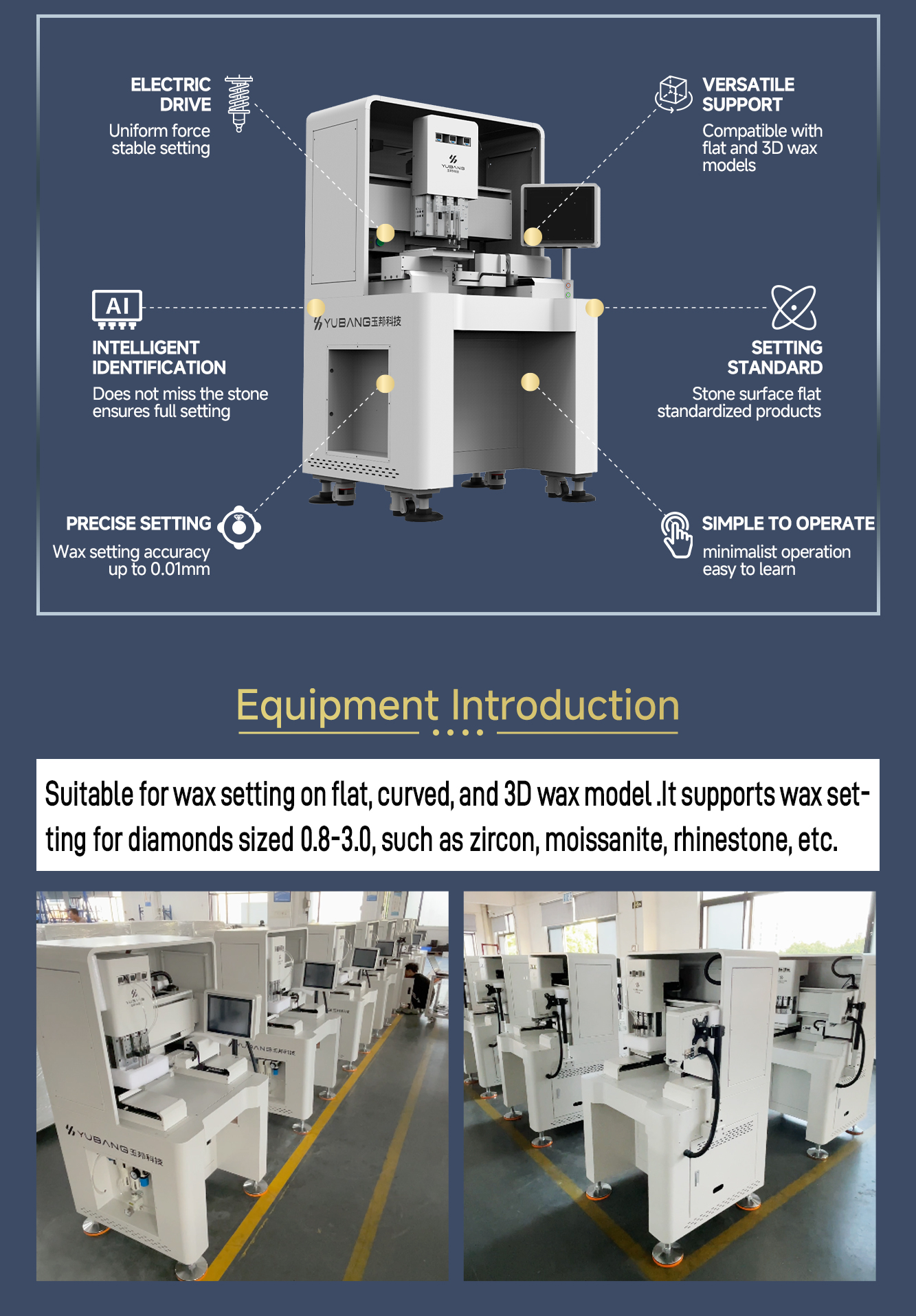

Key Features and Innovations

1.Single-station automatic and efficient.

With 3 suction nozzles ,Single-station , it can set up to 12,000 diamonds per hour, equivalent to 6-8 skilled workers.



2. 5-Axis Linkage System

The 5-axis mechanism allows the machine to set stones on flat, curved, and 3D wax surfaces, covering over 90% of jewelry designs — from rings to pendants and earrings.



3. Electric-Driven Precision Setting

Unlike air-driven systems, the electric-driven setting technology ensures consistent pressure and gentle contact. This prevents damage to wax molds and stones, delivering flawless settings every time.



4. Intelligent Stone Detection

The built-in Intelligent recognition system detects missing or empty slots automatically, re-fills them, and guarantees 100% full stone output — no rework required.



5. Simple Control System

With a touchscreen interface and palm keyboard, operation is as easy as “load + start.” Even beginners can learn the process in under an hour.

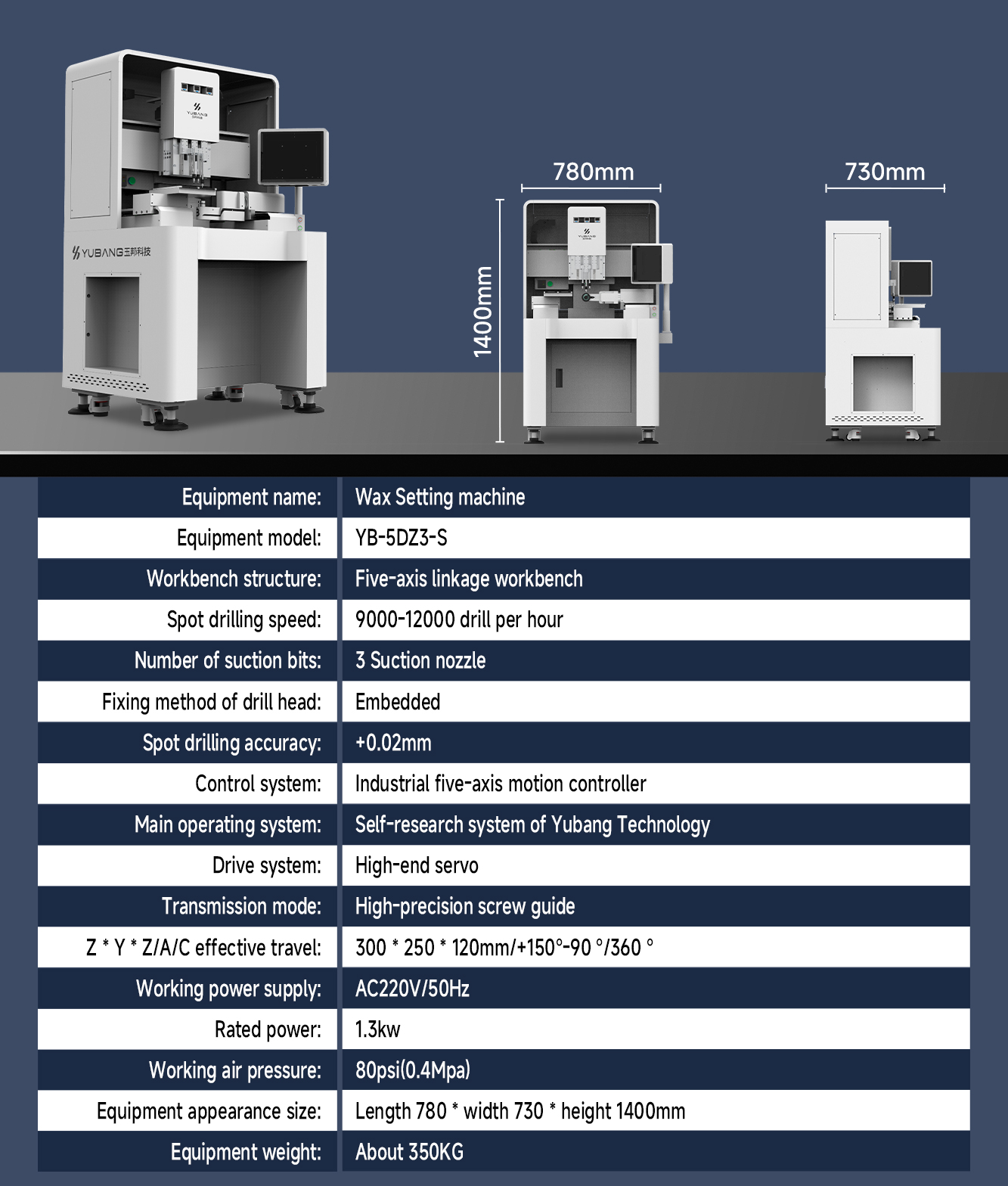

Technical Specifications

•  Model:YB-5DZ3-S
• Dimensions: 780mm*730mm*1400mm
• Accuracy: 1–2 wire precision (≈ ±0.02mm)
• Speed: 9,000-12,000 stones/hour
• Stone Size Range: 0.8–3.0 mm
• Power: 1.3 kW
• Air Pressure:90psi(0.6Mpa)
• Weight: About 350KG
• Supported Stones: Diamonds, Zircons, Moissanite, Rhinestones, Synthetic Gems

How the YUBANG Machine Works



1.Load the Wax Mold – Mount your wax model securely on the platform.

2.Manual positioning – program first then automatic setting;

3.Stone Placement – The electric-driven nozzle picks and places each stone precisely.

4.Pressure Control – The system applies balanced pressure for secure embedding.

5.Auto Check & Correction – Intelligent software identifies any missing stones and corrects them instantly.

6.Finishing – The wax model comes out perfectly set and ready for casting.

Supported Types and Stone Sizes

The YUBANG machine is versatile enough to set on flat, curved, and 3D wax surfaces mold, covering over 90% of jewelry types .Applicable to Diamonds,Zircons,Moissanite,Rhinestones,Colored gemstones.

It can even mix multi-color and multi-size stones (0.8–3.0mm) in one process — a huge plus for custom jewelry manufacturing.

Six Core Advantages Explained

1.Faster speed, high output

Running speed to 12,000 diamonds/hour—equivalent to 6-8 skilled workers.

2. Wide Application for 90% of Jewelry Designs

The 5-axis Linkage 360° rotation for flat, curved, and 3D and large-angle surfaces, supporting nearly all jewelry molds used in the industry.Simultaneous diamond setting with different colors and sizes.

3. Gentle on Wax and Stones

The flexible electric-driven system simulates hand setting, ensuring stones are secure without cracking or damaging the wax.

4.Intelligent Recognition

Forget about missing stones — the system’s AI-based detection ensures every hole is filled before completion.Detects missing or misaligned diamonds and automatically fills gaps.

5. Stable CNC Accuracy

With precision up to 0.01-0.02mm, every stone lands exactly where it should, guaranteeing uniform results across large batches.

6. Easy Operation for Beginners

Zero experience needed. With intuitive controls and one-on-one after-sales training, anyone can master operation in under an hour.

Performance Comparison:

Manual Setting VS Automatic Setting
Feature	Manual Setting	YUBANG Automatic Setting
Accuracy	Varies by skill	±0.02mm constant precision
Speed	800–2000 stones/hour	9,000–12,000 stones/hour
Labor	Skilled workers	One operator
Consistency	Irregular	100% uniform
Damage Rate	High	Minimal
ROI	Slow	Fast payback within months

Use Cases and Applications

Jewelry Factories – For mass production and casting lines.

Custom Design Studios – For small-scale, personalized jewelry creation.

Training Schools – For teaching modern jewelry production.

CNC Workshops – For mold prototyping and precision projects.

Economic and Operational Benefits

Switching to the YUBANG Double Station Wax Setting Machine can:

• l Increase productivity up to 8-10x,
• l Reduce labor costs by 70%-80%,
• l Cut defect rates caused by misalignment,
• l Shorten delivery times, and
• l Boost overall profitability.

It’s not just a tool — it’s an investment that pays for itself through higher efficiency and product quality.
