Double Station Wax Setting Machine for Jewelry Making

As the jewelry industry evolves, speed, precision, and innovation are key. Traditional manual wax setting can't keep up with modern production needs. The YUBANG Automatic Wax Setting Machine is a high-efficiency CNC jewelry tool designed to make stone setting faster, more precise, and easier, helping jewelers stay ahead in a competitive market.

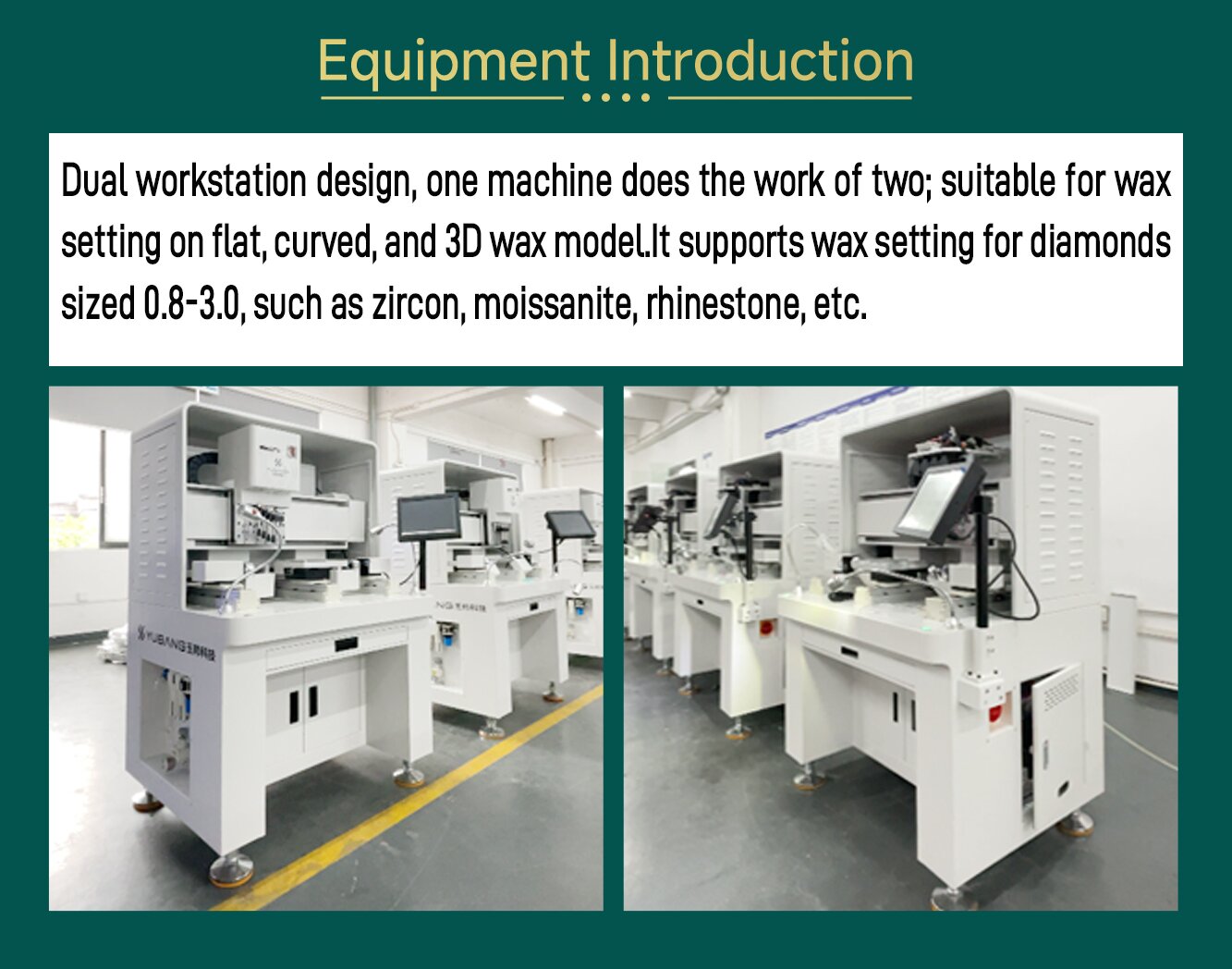

Overview of the YUBANG Double Station Wax Setting Machine

 The YUBANG YB-5DZ4-2 model is an Double station machine that automates the diamond and gemstone setting process on wax molds.  Engineered for precision and speed, it combines 5-axis linkage, intelligent recognition, and electric-driven stone placement, achieving a professional finish suitable for 90% of jewelry styles in the market.

Why Jewelry Manufacturers Choose CNC Wax Setting Machines?

In traditional jewelry setting making, stone setting on wax molds is time-consuming and skill-dependent. CNC wax setting machines solve these challenges with automation.

· Eliminate human error,

· Speed up production,

· Ensure perfect alignment and precision,

· Deliver consistent quality across batches.

For jewelers aiming for higher output and fewer returns, automation is no longer optional — it’s essential.

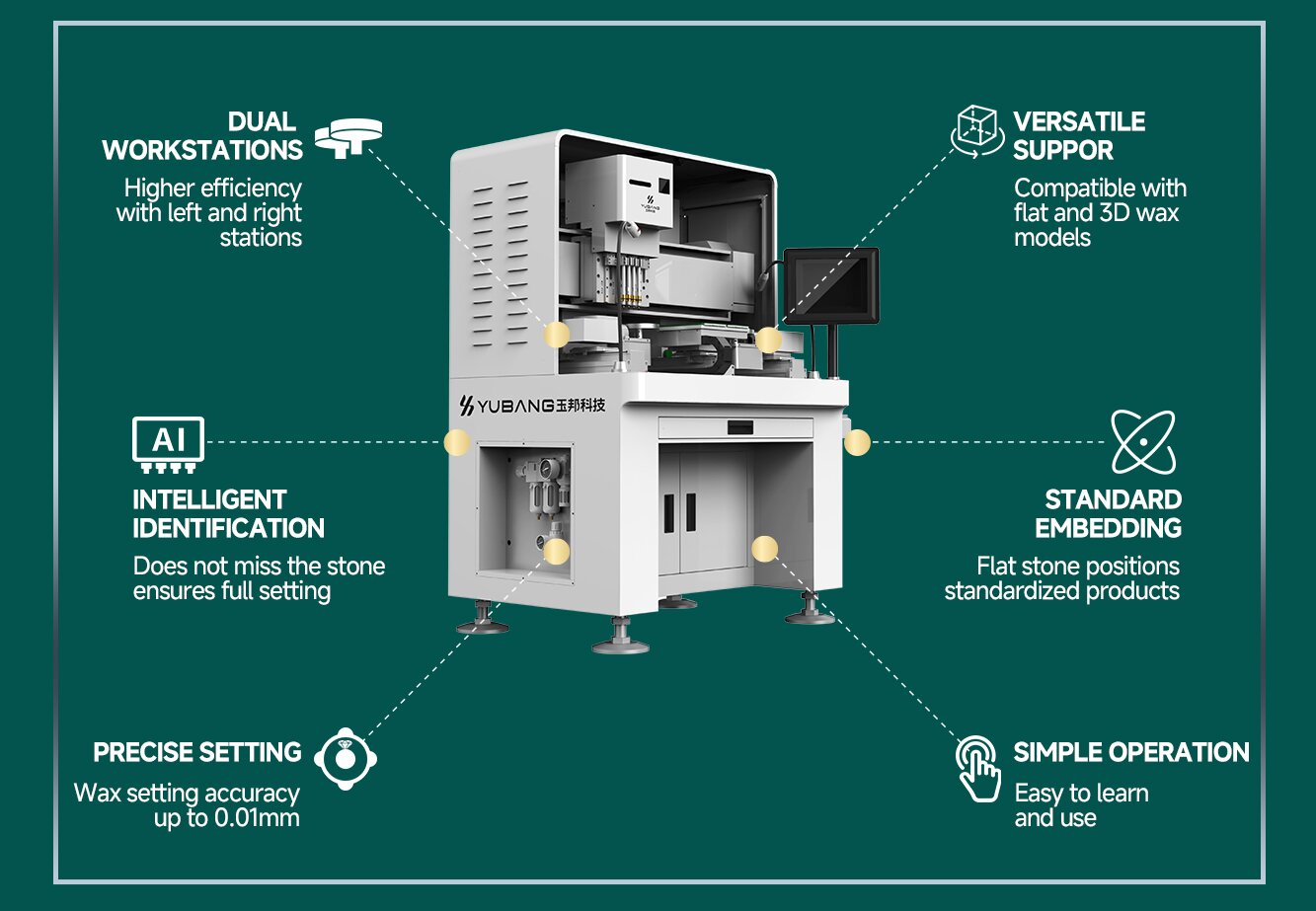

Key Features and Innovations

1.Double-station automatic and efficient.

With dual workstations on both sides, while one side is setting diamonds, the other side can replace the wax mold, allowing for continuous operation and improved efficiency.

2. 5-Axis Linkage System

The 5-axis mechanism allows the machine to set stones on flat, curved, and 3D wax surfaces, covering over 90% of jewelry designs — from rings to pendants and earrings.

3. Electric-Driven Precision Setting

Unlike air-driven systems, the electric-driven setting technology ensures consistent pressure and gentle contact. This prevents damage to wax molds and stones, delivering flawless settings every time.

4. Intelligent Stone Detection

The built-in Intelligent recognition system detects missing or empty slots automatically, re-fills them, and guarantees 100% full stone output — no rework required.

5. Simple Control System

With a touchscreen interface and palm keyboard, operation is as easy as “load + start.” Even beginners can learn the process in under an hour.

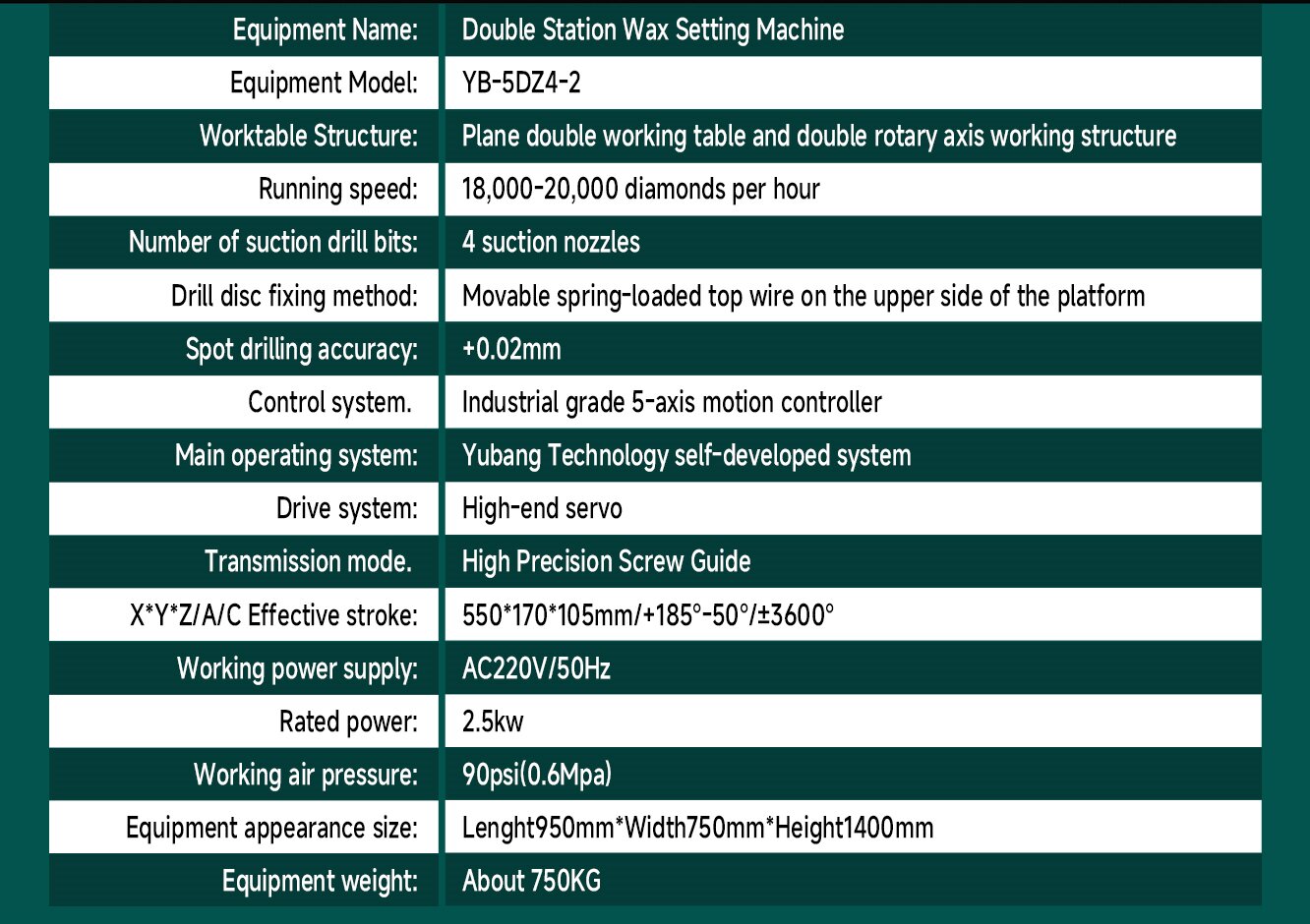

Technical Specifications

• Model:YB-5DZ4-2

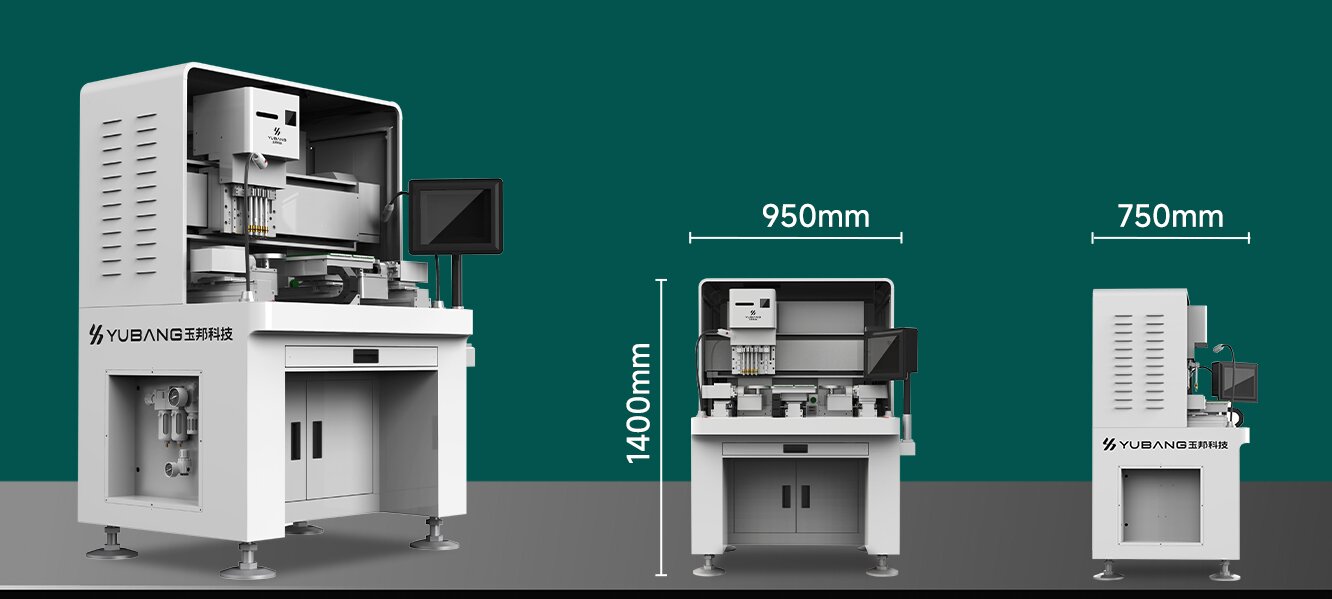

• Dimensions:950mm*750mm*1400mm
• Accuracy: 1–2 wire precision (≈ ±0.02mm)

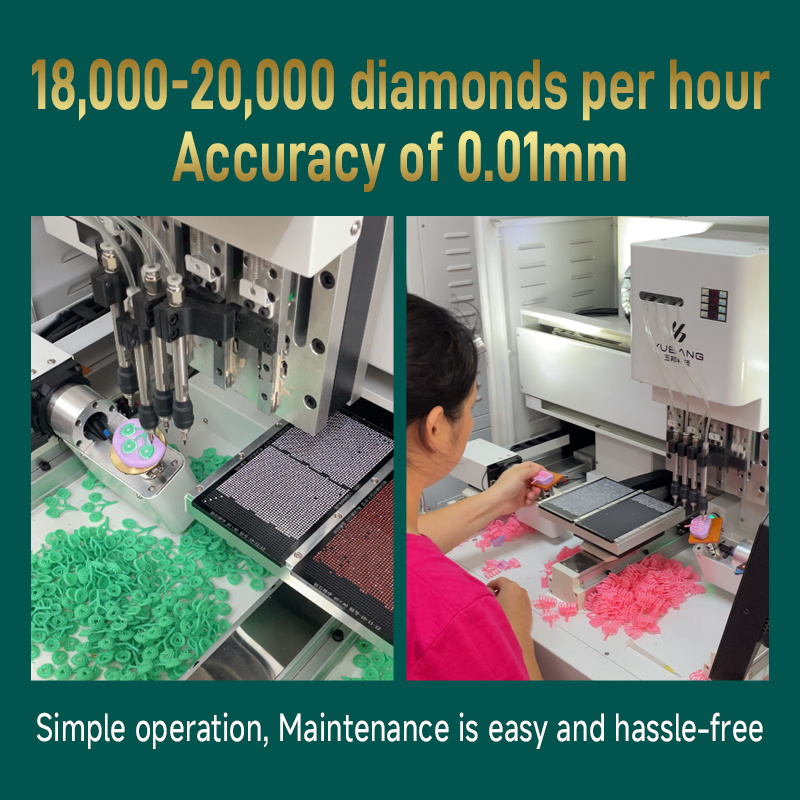

• Speed: 18,000-20,000 stones/hour
• Stone Size Range: 0.8–3.0 mm
• Power: 2.5 kW
• Air Pressure:90psi(0.6Mpa)
• Weight: About 750KG

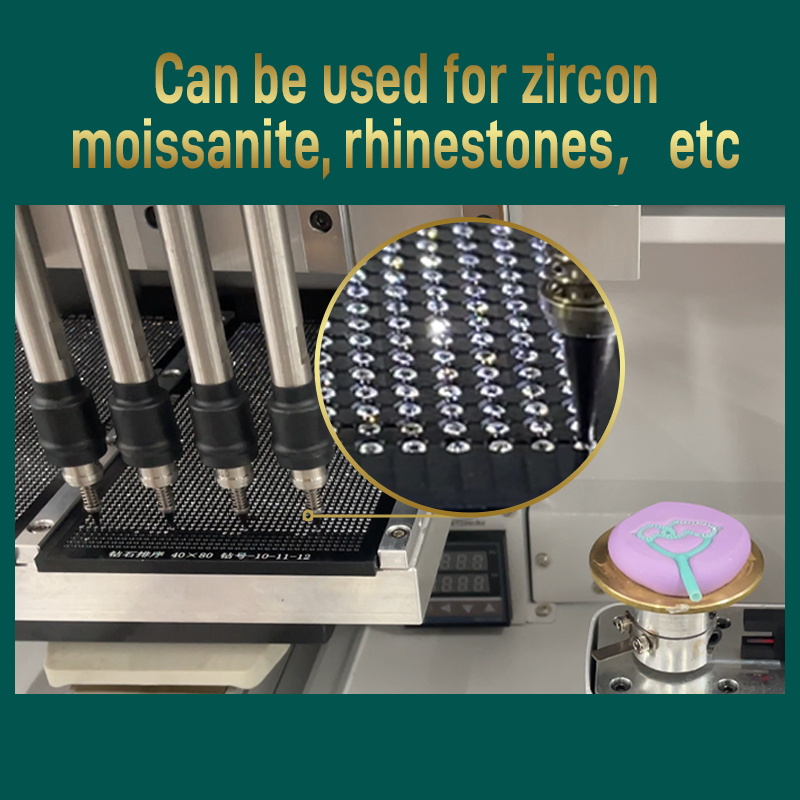

• Supported Stones: Diamonds, Zircons, Moissanite, Rhinestones, Synthetic Gems

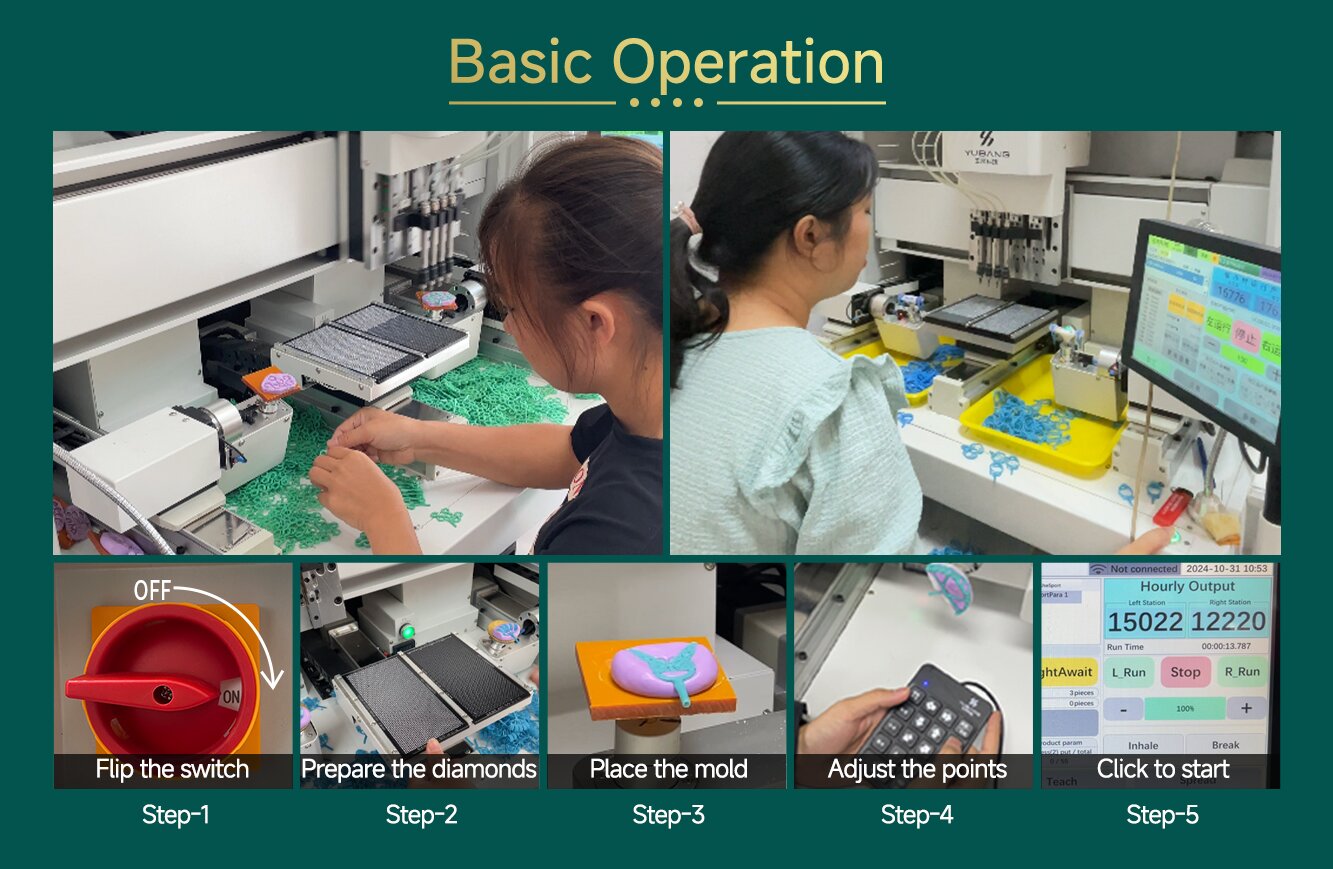

How the YUBANG Machine Works

1.Load the Wax Mold – Mount your wax model securely on the platform.

2.Manual positioning – program first then automatic setting;

3.Stone Placement – The electric-driven nozzle picks and places each stone precisely.

4.Pressure Control – The system applies balanced pressure for secure embedding.

5.Auto Check & Correction – Intelligent software identifies any missing stones and corrects them instantly.

6.Finishing – The wax model comes out perfectly set and ready for casting.

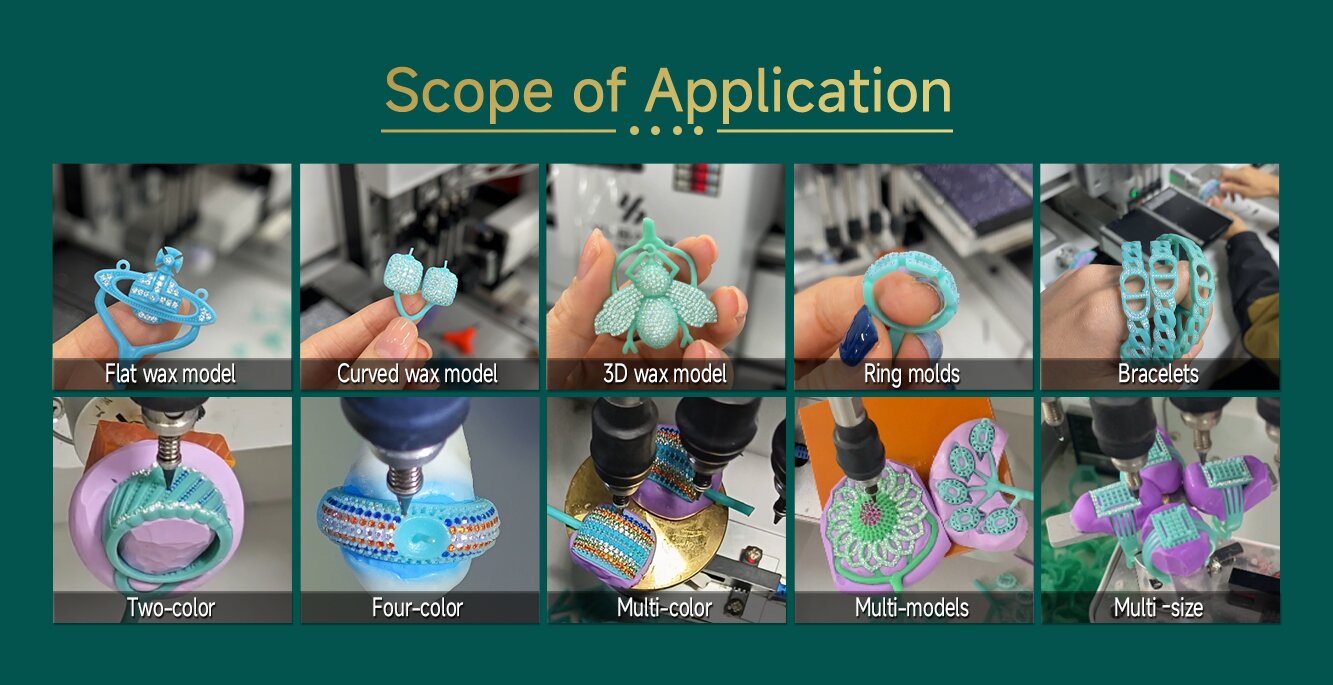

Supported Types and Stone Sizes

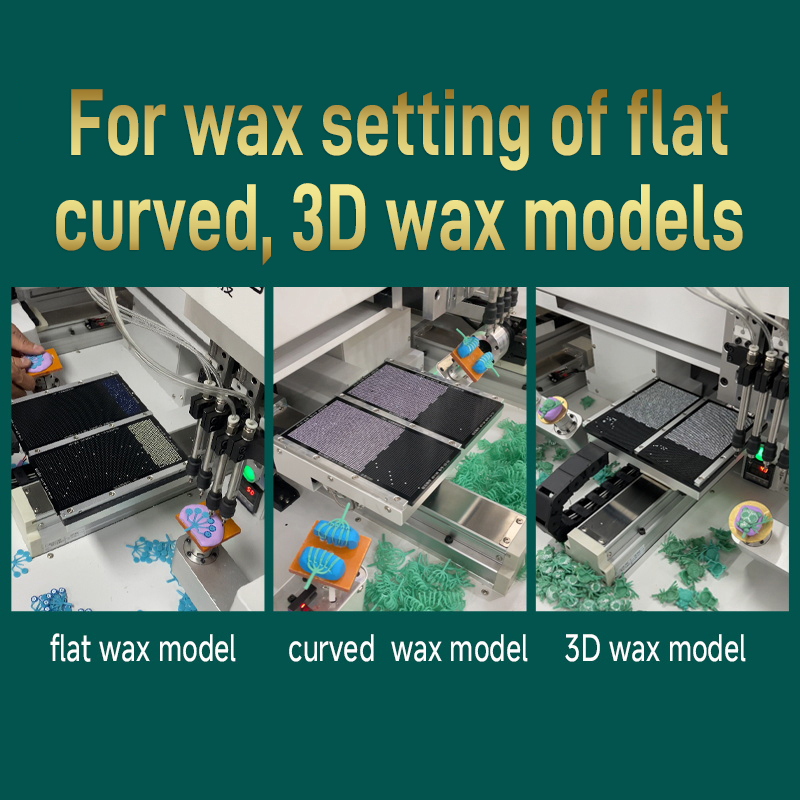

The YUBANG machine is versatile enough to set on flat, curved, and 3D wax surfaces mold, covering over 90% of jewelry types .Applicable to Diamonds,Zircons,Moissanite,Rhinestones,Colored gemstones.

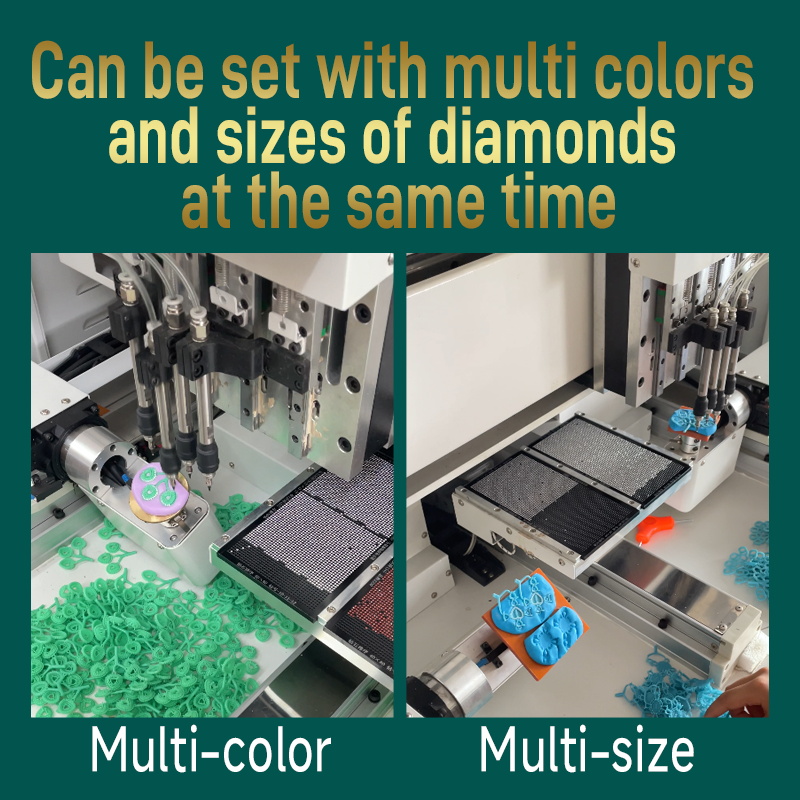

It can even mix multi-color and multi-size stones (0.8–3.0mm) in one process — a huge plus for custom jewelry manufacturing.

Six Core Advantages Explained

1.Dual-station, more relaxed and faster

Dual Workstations,Higher efficiency with left and right stations,Running speed to 20,000 diamonds/hour,One person operate easily

2. Wide Application for 90% of Jewelry Designs

The 5-axis Linkage 360° rotation for flat, curved, and 3D and large-angle surfaces, supporting nearly all jewelry molds used in the industry.Simultaneous diamond setting with different colors and sizes.

3. Gentle on Wax and Stones

The flexible electric-driven system simulates hand setting, ensuring stones are secure without cracking or damaging the wax.

4.Intelligent Recognition

Forget about missing stones — the system’s AI-based detection ensures every hole is filled before completion.Detects missing or misaligned diamonds and automatically fills gaps.

5. Stable CNC Accuracy

With precision up to 0.01-0.02mm, every stone lands exactly where it should, guaranteeing uniform results across large batches.

6. Easy Operation for Beginners

Zero experience needed. With intuitive controls and one-on-one after-sales training, anyone can master operation in under an hour.

Performance Comparison:

Manual Setting VS Automatic Setting
Feature	Manual Setting	YUBANG Automatic Setting
Accuracy	Varies by skill	±0.02mm constant precision
Speed	800–2000 stones/hour	18,000–20,000 stones/hour
Labor	Skilled workers	One operator
Consistency	Irregular	100% uniform
Damage Rate	High	Minimal
ROI	Slow	Fast payback within months



Use Cases and Applications

• Jewelry Factories – For mass production and casting lines.
• Custom Design Studios – For small-scale, personalized jewelry creation.
• Training Schools – For teaching modern jewelry production.
• CNC Workshops – For mold prototyping and precision projects.

Economic and Operational Benefits

Switching to the YUBANG Double Station Wax Setting Machine can:

• Increase productivity up to 8X-10x,
• Reduce labor costs by 70%-80%,
• Cut defect rates caused by misalignment,
• Shorten delivery times, and
• Boost overall profitability.

It’s not just a tool — it’s an investment that pays for itself through higher efficiency and product quality.

Ease of Training and Maintenance

YUBANG ensures one-on-one support for new users.

The system is plug-and-play with minimal maintenance. Regular cleaning of the nozzle and axis keeps performance stable, while remote technical support ensures uptime across global clients.



Who Should Buy the YUBANG Wax Setting Machine

This equipment is ideal for:

l Jewelry manufacturers seeking automation,

l Custom jewelers expanding production,

l Workshop owners upgrading to CNC precision,

l Training centers teaching jewelry design technology.



Why Choose YUBANG Technology

With over a decade of experience in Jewelry CNC innovation, YUBANG is known for its cutting-edge jewelry manufacturing equipment. From software development to hardware engineering, every component is tested for accuracy, stability, and long-term durability.

The company’s after-sales service includes video tutorials, online training, and global technical support, making it one of the most trusted brands in jewelry machinery.



Conclusion

The YUBANG Double Station Wax Setting Machine redefines what’s possible in jewelry manufacturing.Fast, and incredibly precise, it combines technology and artistry to deliver top-tier results. Whether you’re a factory, studio, or training center, this machine is your gateway to modern, efficient, and professional jewelry production.



FAQs



1. How many stones can it set per hour?

Up to 20,000 stones per hour, depending on design complexity.



2. What stone sizes are supported?

The machine supports 0.8–3.0mm stones, including diamonds, zircon, moissanite, and rhinestones.



3. Can beginners use this machine?

Yes. With touch control and minimal setup, it’s beginner-friendly and comes with one-on-one training.



4. Is it suitable for mass production?

Absolutely. It’s designed for both small workshops and high-volume jewelry factories.



5. What makes YUBANG different from others?

YUBANG offers its own CNC control system, electric-driven precision setting, and full global after-sales support.
